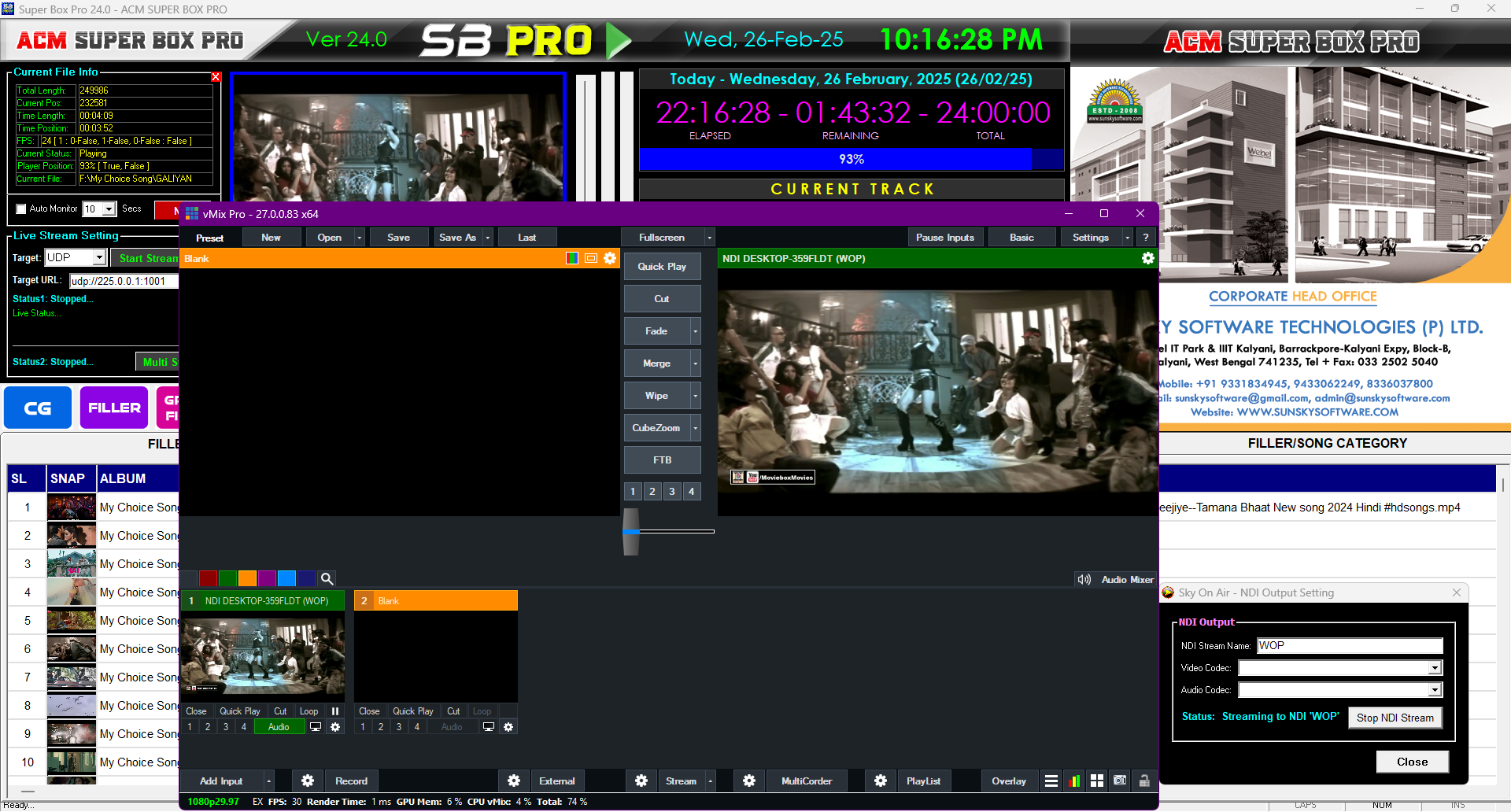

ACM Super Box Pro 24 NDI (PATCHED)
All Features of Gold Pro + Live Pro + Movie Pro
- Gap Filler Setup.
- Back To Back Program Scheduling.
- L- Shape Ad (Simple & 3d).
- Auto Coun down Festival Logo.
- Smooth Scroll.
- Swf, Png, Jpeg, Format Logo Support.
- Video Ad Breaking.
- Cinema Scope.
- Full HD Picture Support.
- Avi, Mp4,Mkv,Mpeg-1, Mpeg-2, Mov, Etc Video Format Support.
- Channel Logo, Festival Logo, Pip, Time Logo, Sponsor Logo,
- Mom, Mow, Trailer Video Facilities
- Blackmagic Intensity Pro 4k, Decklink, Ajakona, High-End Card Support.
- Auto Hang Recovery Option.
- Still chroma Video.
- Video on Demand for Song & Movie.
- Live Sms Funda System.
- Back To Back Scroll Breaking, Full Screen Breaking, Flash News, Flash Header.
- Transparent X Clusive Message, Live Phone in Reporter Name.
- 8 Camera Input Live.
- Video & Still Chroma Key.
- Multiple Live Windows Changing Facility.
- Breaking Footage In Different Live Window.
- Full-screen Weather & Box Weather Report.
- Vote Result Counting System.
All System Requirements of Super Box News Pro Software
- Processor: Intel Core Processors i7/i9- Latest.
- Memory: 16GB.
- Storage: M.2/SSD 240GB/2TB or higher; HDD 7200RPM 4 TB or higher.
- Main Board: Asus/MSI/Gigabyte/Intel Compatible Mainboard.
- Video Board: (BlackMagic) DeckLink Duo; DeckLink 4K Extreme; DeckLink 4K Pro; DeckLink SDI 4K; DeckLink Studio 4K; (AJA) Corvid 3G; Corvid 11, Corvid 22, Corvid 44; Corvid 88; (DeltaCast) Delta-3G-elp-11, Delta-3G-elp-22, DELTA-3G-elp-key 11, DELTA-3G-elpkey 22 TV Format: Ultra-High Definition 2160p25, 2160p30; High Definition 1080p, 1080i.
Specifications
- Video:Video Input IP: Up to 8 channels input available. RTMP, HD SDI, H265, H264, MPEG2, Single channel input HD, HTTP, HLS, UDP
- Video Input SDI: 2G-SDI, SMPTE-2082, 12-bit, 10-bit & 8-bit, 6G-SDI, SMPTE-2081, 10-bit and 8-bit, 3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit •1.5G-SDI, SMPTE 372M.
- Video Output IP: SMPTE ST 2110, 2022-6, 2022-7. Up to four channels of output are available, including RTMP, HD SDI, H265, H264, and MPEG2.
- Video Output SDI: 2G-SDI, SMPTE-2082, 12-bit, 10-bit & 8-bit 6G-SDI, SMPTE-2081, 10-bit and 8-bit 3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit1.5G-SDI, SMPTE 292M, Single Link 4:2:2 10-bit & 8-bit.
- Video Format: (2K) 2048x1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1080i 50, 59.94; (HD) 720P 50, 59.94, 60; (SD) 625i 50; (SD) 525i 59.94 SMPTE ST 2110, (4K).
- Audio:Audio Input IP: Up to 16-channel embedded audio (SMPTE 2022-6, 2022-7 HD SDI), 24-bit per channel, 48 kHz synchronous.
- Audio output IP supports up to 16 channels of embedded audio (SMPTE 2022-6, 2022-7 HD SDI) with 24 bits per channel at a synchronous rate of 48 kHz.
